Sale price
$696.00 USD
Regular price
$1,349.00 USD
Shipping calculated at checkout.

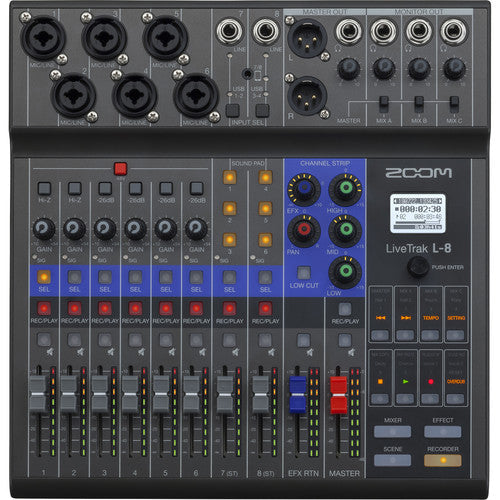

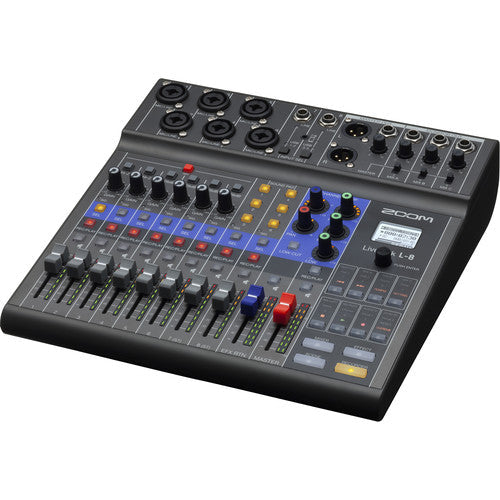

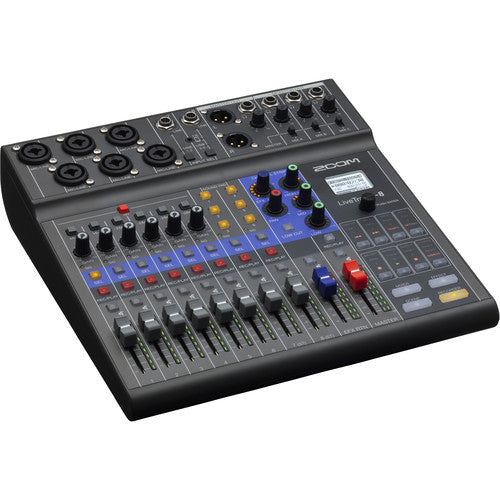

Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder
POWER TO THE PODCAST
Podcast creators are a special breed. They require a unique set of audio features, along with the flexibility of a proper mixing console. The LiveTrak L-8 combines Zoom’s famous audio performance with features made for podcasters.
SOUND PAD MAGIC
Press a button to play intros, outros, jingles, ads, and sound effects. With 6 easily-assignable Sound Pads, the right sound is at your fingertips.
FIRST-TIME CALLER, LONG-TIME LISTENER
Remote interviews are a snap with the L-8; connect your phone via the provided TRRS cable. The Mix-Minus function automatically prevents echo and feedback to and from the caller. Or use the USB connection to route audio from Skype, Facetime, Hangouts, Slack, and more.
FREEDOM OF SPEECH
Zoom’s preamps are famous for a good reason: they’re transparent, robust, and ultra-reliable. The L-8 features six independent Zoom preamps, built to handle anything from a whisper to a raucous debate.
A TRACK FOR EVERYONE
The pros know that when you record everyone on their own separate track it just sounds better and provides more flexibility in the edit. The L-8 records separate tracks directly to your SD card, enabling you to edit them later.
Specifications
| Form Factor |
Desktop |
| Number of Tracks |
8 |
| Maximum Simultaneous Tracks |
12 x Recording / 10 x Playback |
| Display |
LCD (Backlit) |
| Maximum Sampling Rate |
96 kHz / 24-Bit |
| Meters |
12 x 9-Segment LED |
Signal Processing
| Gain/Trim Range |
Mic/Line Inputs:
+10 dB to +54 dB (Hi-Z Off)
-3 dB to +41 dB (Hi-Z On) |
| High-Pass Filter |
75 Hz, 12 dB/Octave |
| EQ Parameters |
High: ±15 dB at 10 kHz (Shelving)
Mid: ±15 dB at 2.5 kHz (Notch/Peak)
Low: ±15 dB at 100 Hz (Shelving) |
| Built-In Effects |
8 x Effect (Type Unspecified) |
Connectivity
| Analog Audio I/O |
2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
4 x Combo XLR-1/4" TRS Balanced Mic/Line Input
2 x 1/4" TS Unbalanced Line Input
1 x 1/8" / 3.5 mm TRRS Unbalanced Smartphone In/Out
2 x XLR 3-Pin Balanced Line Output
4 x 1/4" TRS Unbalanced Headphone Output |
| Phantom Power |
48 V |
| Host Connection Protocol |
USB 2.0 |
Performance
| Frequency Response |
20 Hz to 20 kHz +0/-1 dB (at 44.1/48 kHz)
20 Hz to 40 kHz +0/-3 dB (at 96 kHz) |
| Maximum Input Level |
Mic/Line Inputs:
-2 dBu for 0 dBFS (without Pad)
+24 dBu for 0 dBFS (with Pad)
1/4" Line Inputs:
+3 dBu (Unbalanced)
1/8" / 3.5 mm Inputs:
+3 dBu |
| Maximum Output Level |
XLR Outputs:
+14.5 dBu |
| Headphone Output Power |
10 mW per Channel into 60 Ohms (Max) |
| Impedance |
XLR Inputs:
3 Kilohms
1/4" Line Inputs:
3 Kilohms (Balanced)
10 Kilohms (Unbalanced)
1/4" Hi-Z Inputs:
1 Megohm
1/8" / 3.5 mm Inputs:
10 Kilohms
XLR Outputs:
100 Ohms
1/4" Outputs:
10 Ohms |
| EIN |
≤ 121 dBu (IHF-A, +54 dB Gain, 150-Ohm Source) |
Digital Audio
| Audio File Formats |
WAV |
| Sample Rates |
44.1 / 48 / 96 kHz (Record) |
| Bit Depths |
16 / 24-Bit (Recording)
24-Bit (AD/DA Conversion) |
Audio Storage & Playback
| Supported Media |
SD Card |
| Memory Card Slot |
1 x SDXC |
| Supported Media Capacity |
SDHC:
4 GB Minimum to 32 GB Maximum
SDXC:
64 GB Minimum to 512 GB Maximum |
Compatibility
| OS Compatibility |
macOS 10.12 or Later
Windows 7 or Later (32/64-Bit)
iOS 10 or Later
*As of November 2021: Check with the manufacturer for the most up-to-date compatibility
|
| Processor Requirement |
Mac:
Intel Core i3 or Better
PC:
Intel Core i3 or Better |
| Required Hardware |
Available USB 2.0 Port, USB 3.0 / 3.1 Gen 1 Port ([or])
Lightning to USB Adapter (Not Included) |
Power
| Power Requirements |
Battery, AC/DC Power Adapter (Not Included), USB Bus Power |
| AC/DC Power Adapter |
5 VDC at 1 A (Included) |
| Power Consumption |
5 W |

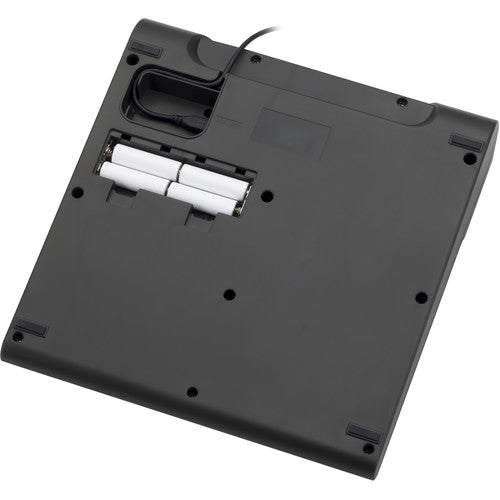

| Battery Type |
4 x AA |
| Approximate Battery Life |
2 Hours (Alkaline, 4 Channels, Recording, Phantom Off, Backlit Display, Stamina Mode/Battery Save, 62-Ohm Load)
3.5 Hours (NiMH, 4 Channels, Recording, Phantom Off, Backlit Display, Stamina Mode/Battery Save, 62-Ohm Load)
6.5 Hours (Lithium, 4 Channels, Recording, Phantom Off, Backlit Display, Stamina Mode/Battery Save, 62-Ohm Load) |
Physical
| Dimensions |
10.6 x 11.1 x 2.9" / 26.8 x 28.2 x 7.4 cm |
| Weight |
3.4 lb / 1.6 kg |
Packaging Info
| Package Weight |
4.975 lb |
| Box Dimensions (LxWxH) |
13.9 x 13.4 x 3.8" |
