Panasonic Ag-UX90 4K Professional Camcorder

$2,930.00 USD $4,699.00 USD

Panasonic Ag-UX90 4K Professional Camcorder

Name: Panasonic Ag-UX90 4K Professional Camcorder
Brand: Panasonic
SKU: PANASONICAG-UX90-BLK
Price: 2930.00 USD
Availability: OutOfStock

Out of stock

$2,930.00 USD $4,699.00 USD

Shipping calculated at checkout.

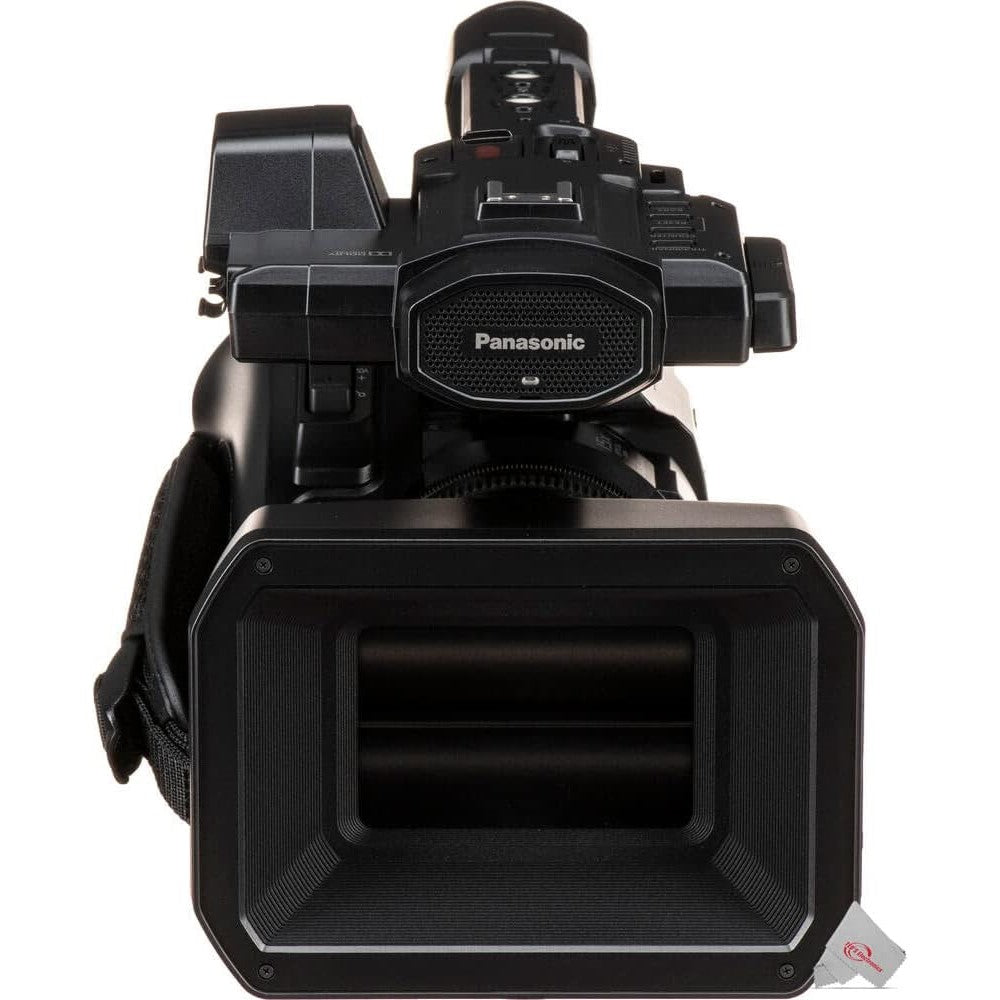

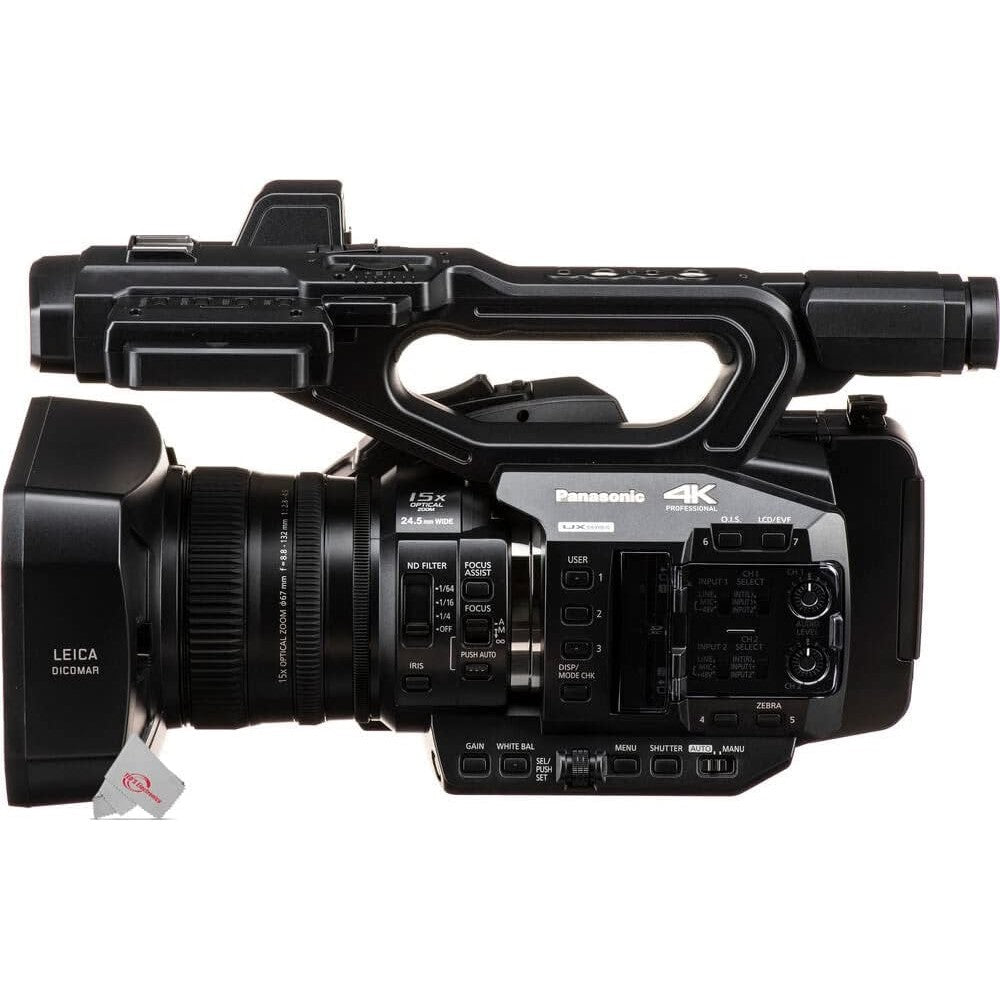

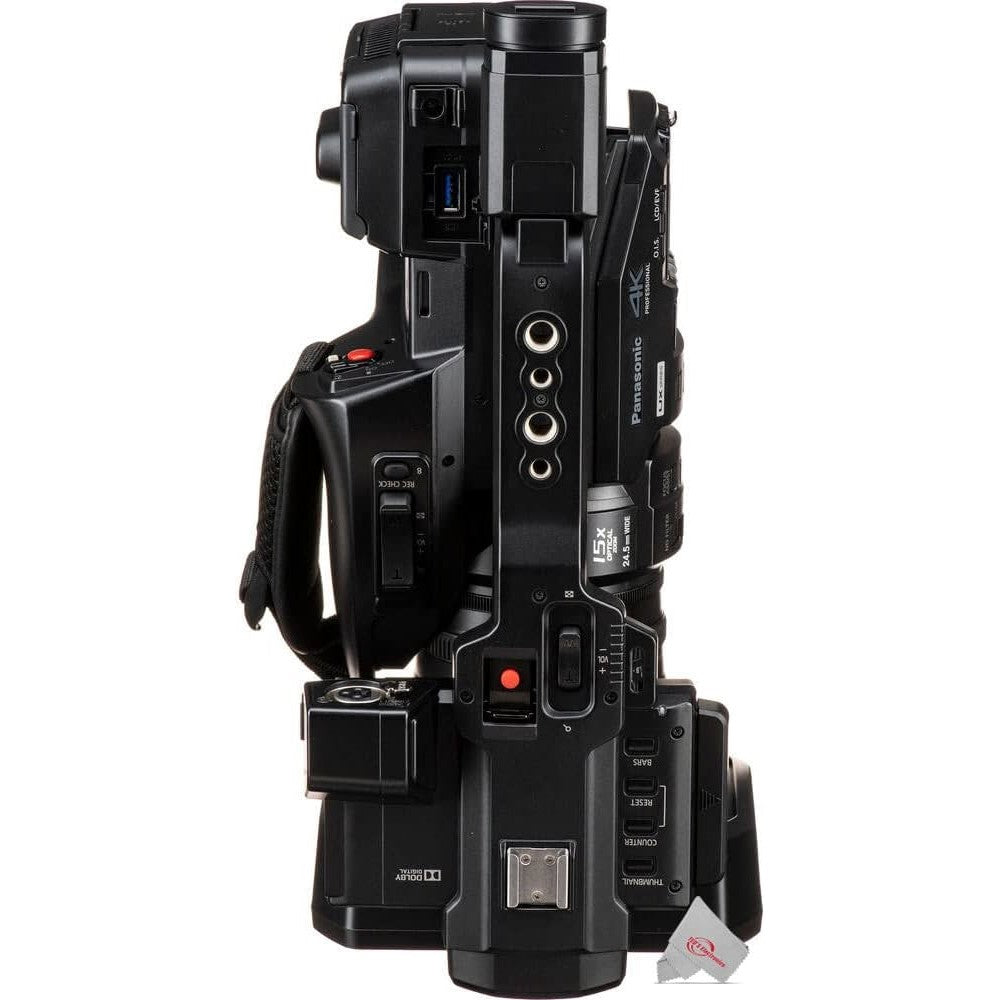

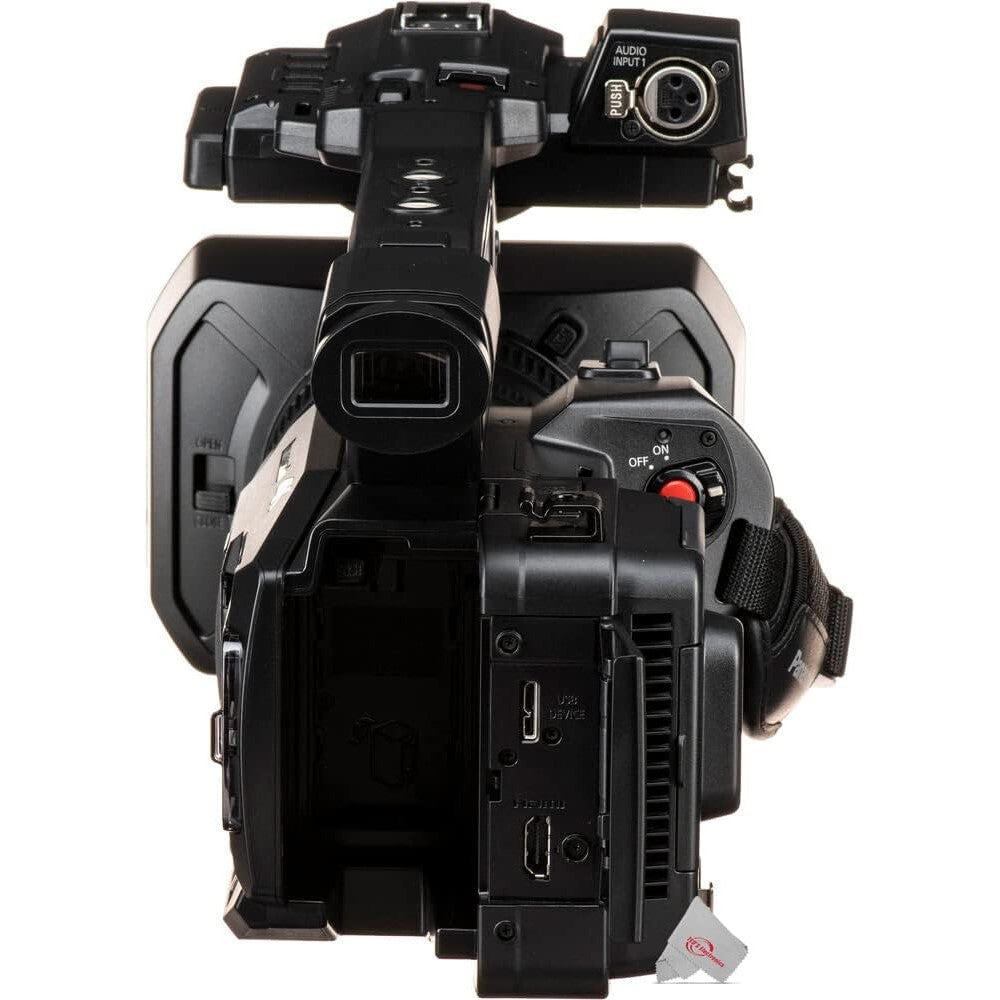

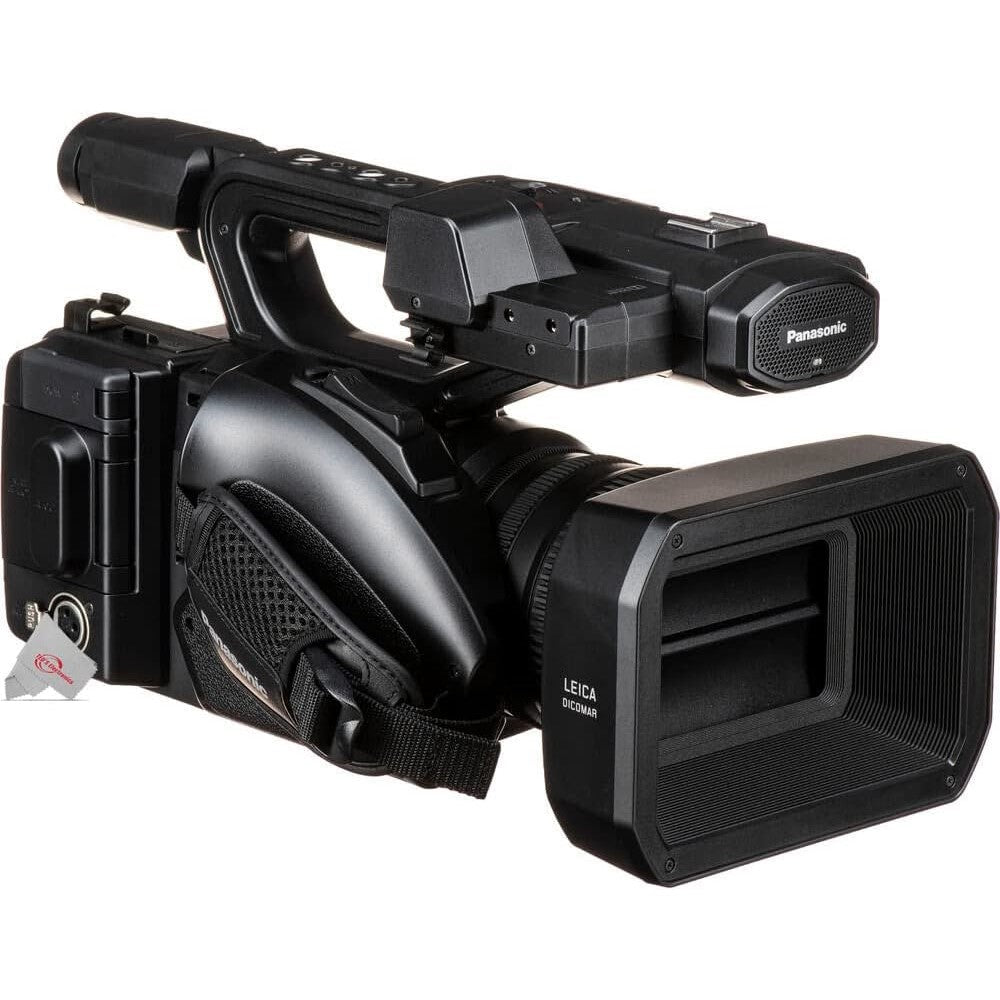

Panasonic Ag-UX90 4K Professional Camcorder

Featuring a wide-angle 24.5 mm*, 15x optical zoom lens, and 1.0-type MOS sensor, the AG-UX90 records high-quality 4K/FHD images with excellent cost performance.

Panasonic introduces the 4K camcorder UX series to meet professional 4K video production needs. The AG-UX90 is the “UX standard model” for easy, high-quality 4K/FHD recording. It is equipped with a newly designed compact lens featuring a wide 24.5mm angle* and 15x optical zoom. Its Optical Image Stabilizer (O.I.S.), intelligent AF function, and Manual Three Rings are ideal for professional camera work. The AG-UX90 is equipped with a 1.0-type high-sensitivity MOS sensor. It supports UHD 25p and FHD 50p/25p multi-format recording. In addition to 4K (UHD) high resolution, it provides high-quality FHD recording at 50 Mbps. Two SD memory card slots enable relay/simultaneous recording. The AG-UX90 also has a design and operating ease that will feel familiar to professional photographers, and a variety of interfaces, including HDMI output and XLR input. Offering the same level of agility and mobility as a conventional HD handheld camcorder, the AG-UX90 provides powerful support for high image-quality 4K/HD video production.

* 35mm film camera equivalent in FHD mode. 35.4mm in UHD mode.

FEATURES

Image Quality

Newly Developed Wide-Angle 24.5 mm and 15x Optical Zoom LEICA DICOMAR Lens
1.0-Type MOS Sensor for High-Precision, UHD 25p or FHD 50p Recording

Recording Quality

Advanced Optical Image Stabilizer and High-Speed, High-Precision Intelligent AF
Versatile Manual Functions — Manual Three Rings + Focus Assist
FHD VFR (Variable Frame Rate) Recording, Double SD Memory Card Slots
Camera Image Adjustment Functions, Including Details and Gamma Modes

Excellent Operability

Functions and Designs to Support Professional Camera Work
Professional Interfaces for Smooth System Operation

SYSTEM CHART

Specification

General
Power	DC 7.28 V (when the battery is used) DC 12 V (when the AC adaptor is used)
Power Consumption	12.2 W (when the LCD monitor is used)
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity	10 % to 80 % (no condensation)
Weight ^*1	Body: Approx. 1.9 kg (4.19 lb) (body only, excluding lens hood, battery, and accessories) Shooting: Approx. 2.3 kg (5.07 lb) (including lens hood, battery, and eye cup)
Dimensions ^*1	169 mm (W) x 195 mm (H) x 340 mm (D) (6-21/32 inches x 7-11/16 inches x 13-3/8 inches) (excluding protrusion and eye cup) 169 mm (W) x 195 mm (H) x 382 mm(D) (6-21/32 inches x 7-11/16 inches x 15-1/32 inches) (including eye cup, excluding protrusion)
Camera Unit
Pickup Device	1.0-type MOS solid-state image sensor
Effective Pixels	17.78 megapixel
8.59 megapixel	UHD 25.00p
Lens	Optical image stabilizer lens, optical 15x motorized zoom F2.8 to F4.5 (f=8.8 mm to 132 mm) 35 mm equivalent: f=24.5 mm to 367.5 mm: FHD 50.00p/25.00p f=35.4 mm to 531.0 mm: UHD 25.00p
Filter Diameter	67 mm
ND Filter	4 Positions (OFF, 1/4, 1/16, 1/64)
Shortest Shooting Distance (M.O.D.)	Approx. 1.0 m from the front lens
Gain Setting	L/M/H selector switch Standard mode: 0 dB to 30 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H) Extended ON: -3 dB to 30 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H) 33 dB and 36 dB switched (when assigning [S.GAIN] to the USER button)
Color Temperature Setting	ATW, ATW LOCK, Ach, Bch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)
Shutter Speed	50i/50p mode
25p mode	1/25 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
Shutter Speed (Slow Shutter)	50i/50p mode
25p mode	1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
VFR Recording Frame Rate	25p mode
Minimum Subject Illumination	1.1 lx (F2.8, Super Gain 36 dB, Manual slow shutter 1/25s)
Digital Zoom	2x/5x/10x, i.Zoom: max. 25x (optical zoom + digital zoom)
Lens Hood	Hood with lens cover
Memory Card Recorder
Recording Media* ²	SDHC memory card (4 GB to 32 GB), SDXC memory card (48 GB to 128 GB) UHS-I supported
Recording Slot	Slot x 2
System Format	50 Hz
Recording Format	MOV, MP4, AVCHD
Recording Mode	Please see page the "Recording Format" table.
Recording Time	Please see the "Recording Time" table.
2 Slot Functions	Relay, Simultaneous
Still Picture Recording Mode	JPEG (DCF/Exif2.2)
Still Picture Recording	Motion Picture Playback: 8.3 M: 3840 x 2160 (16:9), 2.1 M: 1920 x 1080 (16:9), 0.9 M: 1280 x 720 (16:9)
Digital Video
Video Signal for External Output	8bit 4:2:2
Recording Video Signal	8bit 4:2:0
Video Compression Format	MPEG-4 AVC/H.264 High Profile (MOV/MP4/AVCHD)
Digital Audio
Sampling Frequency	48 kHz/16 bit 2 ch
Audio Signal Format	LPCM (MOV/MP4), Dolby Audio (AVCHD)
Headroom	12 dB
Video Input/Output
VIDEO OUT	VIDEO OUT connector x 1
HDMI	Type A connector x 1, VIERA Link not supported Output format: 2160/25.00p, 1080/50p/25p/50i, 720/50p, 576/50p
Audio Input
Built-in Microphone	Stereo microphone
XLR Input	XLR (3-pin) x 2 (INPUT1, INPUT2) high impedance, LINE/MIC/MIC+48V (switchable SW) LINE: +4 dBu/0 dBu (switchable menu) MIC: -40 dBu/-50 dBu/-60 dBu (switchable menu)
Audio Output
HDMI	2 ch (LPCM)
AUDIO OUT	AUDIO OUT x 2
Headphones	3.5 mm diameter stereo mini jack x 1
Speaker	20 mm diameter, round x 1
Other Input/Output
CAMERA REMOTE	2.5 mm diameter super mini jack x 1 (ZOOM S/S) 3.5 mm diameter mini jack x 1 (FOCUS IRIS)
USB3.0 HOST	Standard-A connector, 9-pin, external media device connection ^*3 , bus power supported
USB 3.0 DEVICE	Micro-B connector, 10-pin, Mass storage function (read-only)
DC IN 12V	DC 12 V (DC 11.4 V to 12.6 V), EIAJ type 4
Monitor/Viewfinder
LCD Monitor	3.5-type LCD monitor, Approx. 1,150,000 dots
Viewfinder	0.24-type EVF, Approx. 1,560,000 dots equivalent
