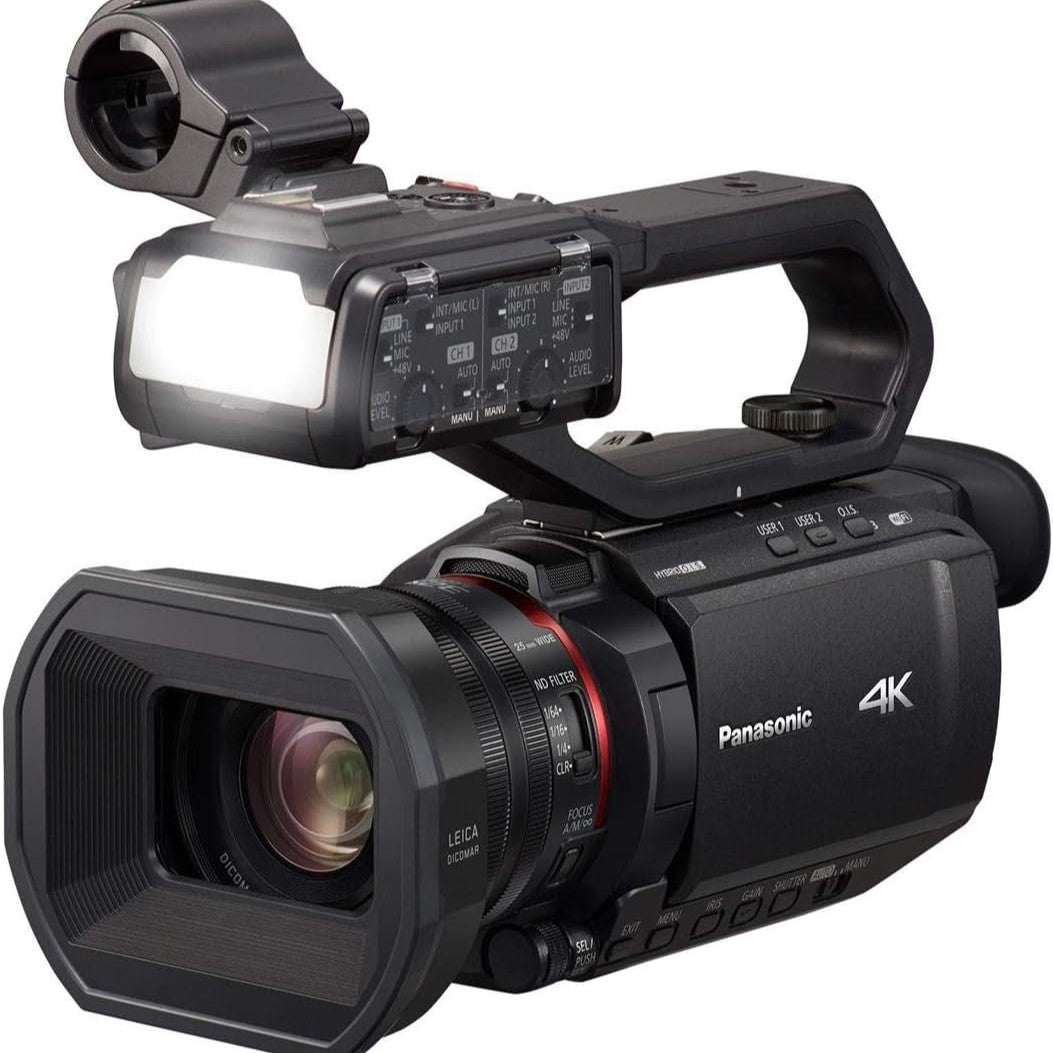

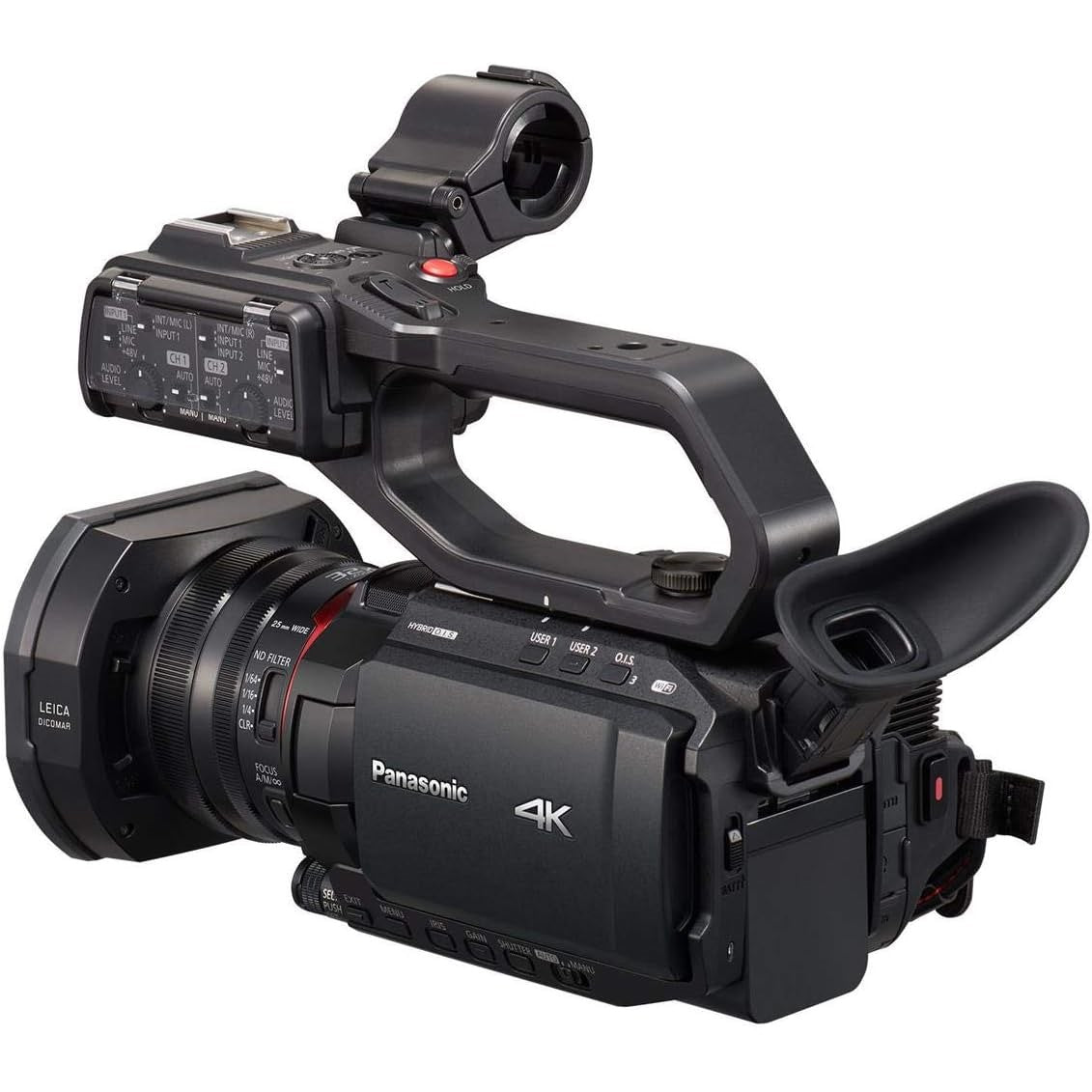

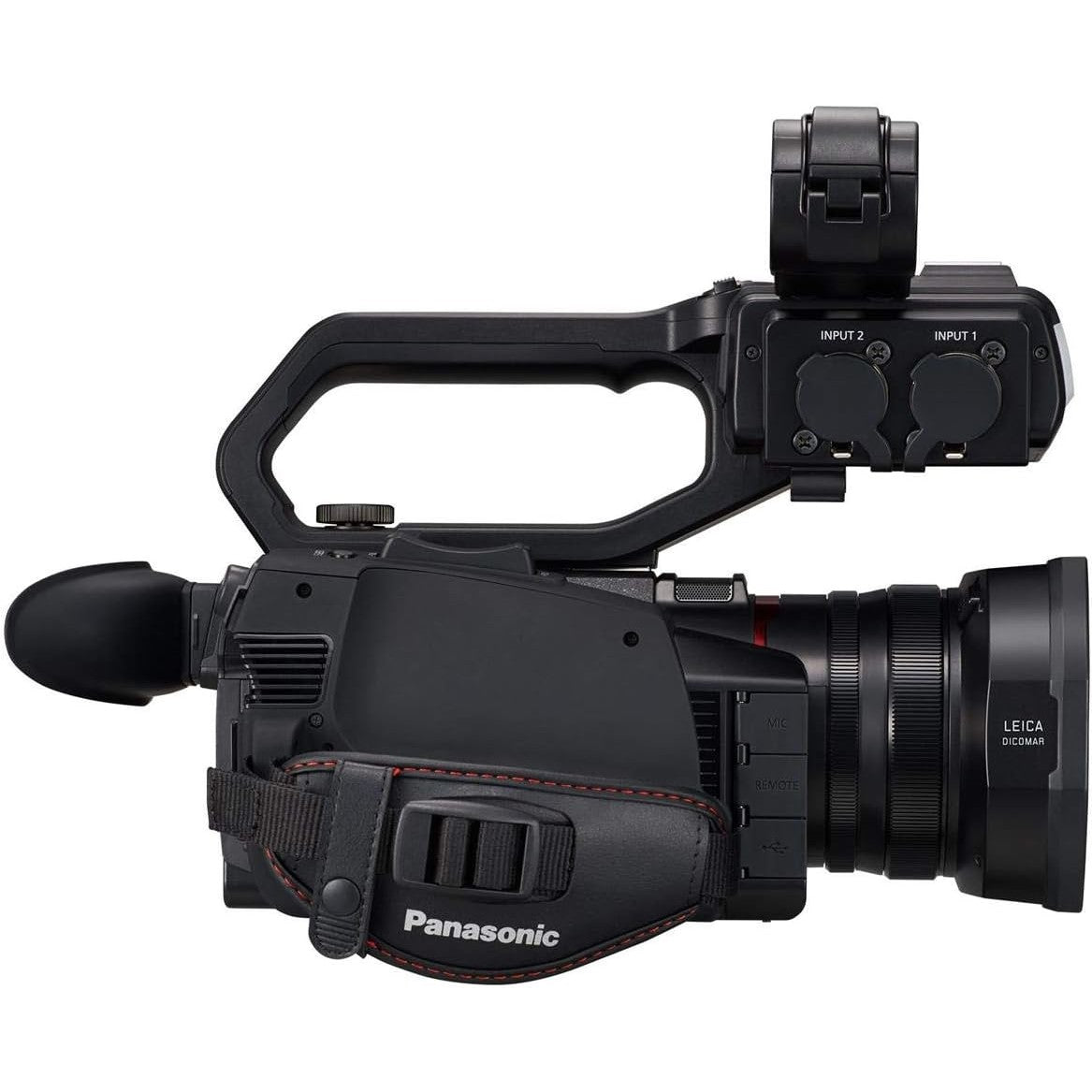

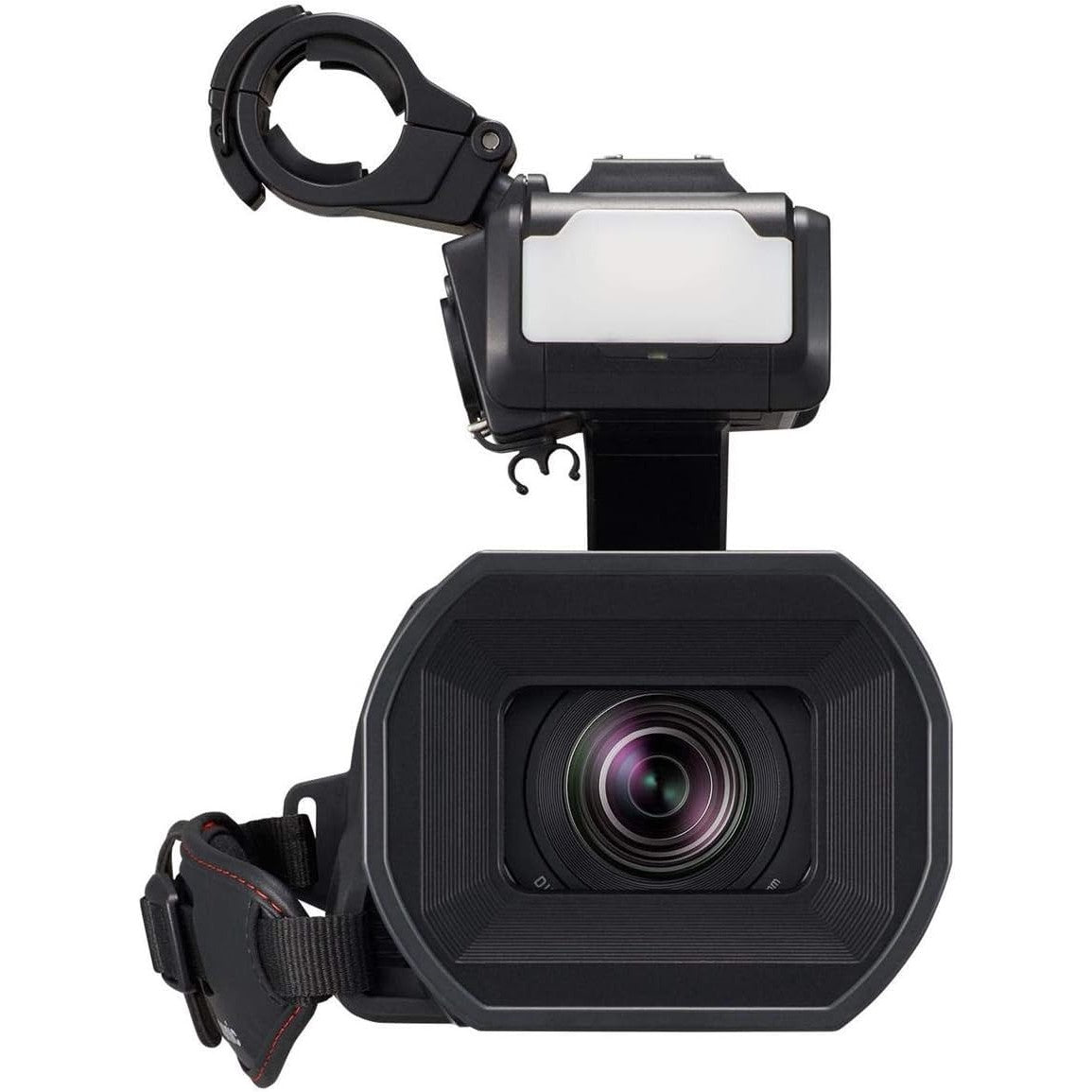

Panasonic AG-CX10 4K 60p Camcorder

Panasonic AG-CX10 4K 60p Camcorder

The Smallest, Lightest* 4K 60p Camcorder

Professional camcorders combine power with mobility. These compact units enable high-quality 4K 60p recording with the excellent portability required for professional use. They deliver a high-spec optical performance with a wide-angle 25mm* lens and optical 24x zoom featuring Face Detection AF/AE. Professional functions include Two Manual Rings, an ND Filter, a Built-in LED Video Light, and 24-bit High-Resolution PCM Audio Recording.
Video acquisition utilizes 4:2:2 10-bit internal recording* and the new HEVC (High-Efficiency Video Coding) codec for video compression. HD live streaming is possible with the camcorder body alone due to built-in Wi-Fi. Also, in addition to serving as a highly mobile and responsive director’s camera for strong support when shooting on-location and news gathering, the design also meets the needs of advanced amateurs for uncompromising 4K imaging.

• *1: For a camcorder with an integrated lens capable of 4K 60p recording
  (as of January 6th, 2020, according to Panasonic research).
• *2: 35mm camera equivalent.
• *3: Up to 4K30p.

FEATURES

High-quality Recording

• 1/2.5-type (1/2.5-inch) Sensor
• LEICA Dicomar Lens
• Wide 25mm and Optical 24x Zoom Lens
• 4K High-Precision AF
• Face Detection AF/AE Using Color
• 5-Axis Hybrid O.I.S. (UHD/FHD)
• Ball O.I.S. System
• ND Filter
• Heat-Dispersing Design
• Venus Engine
• HEVC 4:2:0 10-bit Recording
• Multi-Formats Supported
• Proxy Rec Supported
• 4:2:2 10-bit Internal Recording / HDMI Output
• MOV File System for Excellent File Management
• Super Slow-motion Recording
• IR (Infrared) Shooting in Dark Places
• 16-Axis Independent Color Correction Function
• Soft Skin
• Master Detail
• 8-Mode Gamma
• Scene Files
• Save/Restore Camera Setting
• LCD/EVF Displays That Assist Shooting
• Professional Assist Function

Supported for Pro Operations

• Simultaneous Display on LCD Monitor and EVF
• 3.5-inch LCD with Touch Operation
• Selfie-shooting Mode
• Tiltable Viewfinder with Eyecup
• Two Manual Rings
• Double SD Card Slot
• Other Recording Functions
• Built-in LED Video Light
• 24-bit High-Resolution Linear PCM Audio Recording
• Cable Holding Clamp
• Detachable Handle Unit
• User Buttons
• Main Parts and Controls

Versatile Networking Functions

• Built-in Wi-Fi
• Wireless Control from a Tablet or Smartphone
• Wired Remote
• FHD Live Streaming
• 3G-SDI Output
• P2 MXF File Formats Supported with Proxy
• Easy IP Connection: NDI|HX Capable

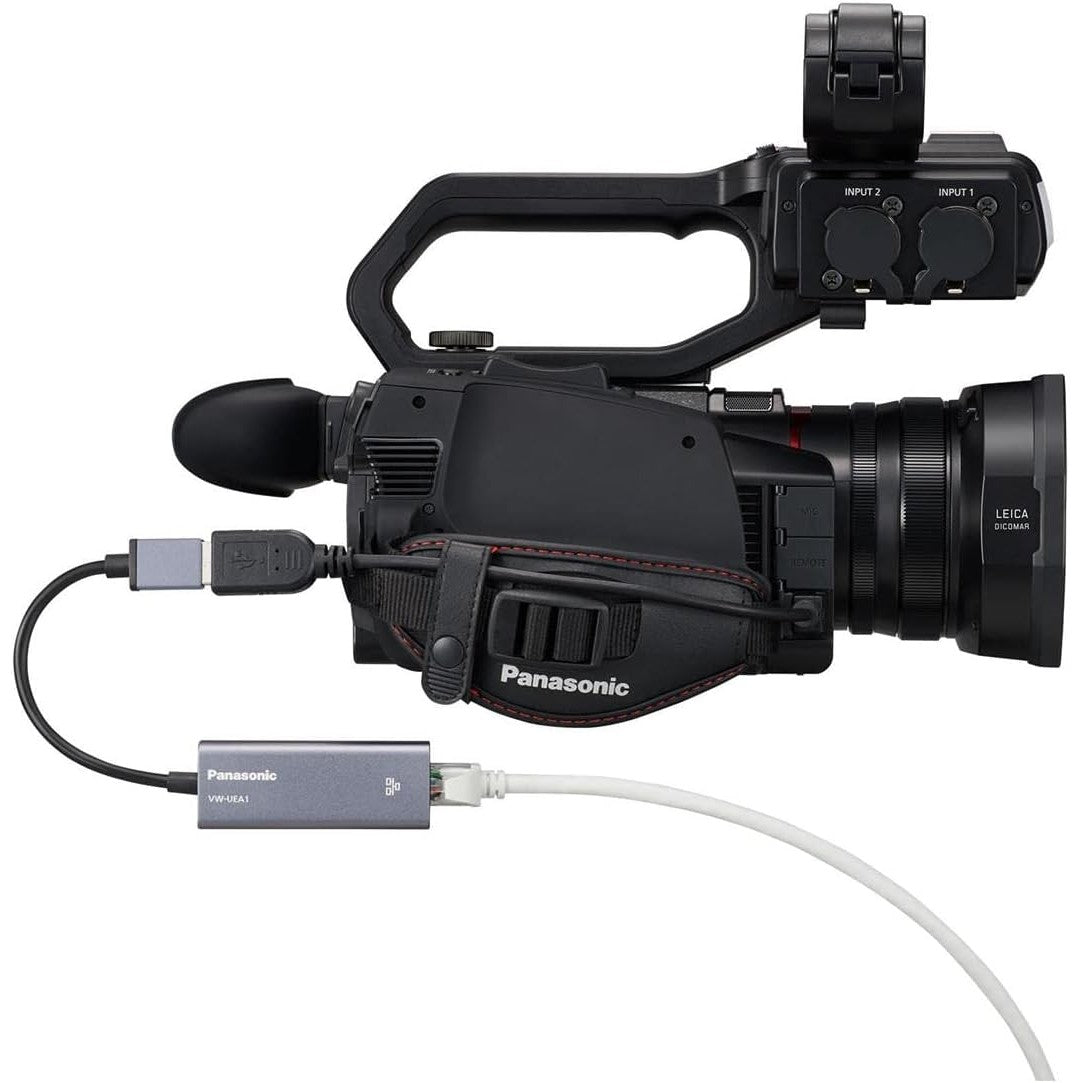

• Ethernet (Conversion Adaptor Included)

WORKFLOW

Live Video Streaming System

NDI | HX Multi-Camera Live Production System

Specifications

• Image Sensor: 1-Chip 1/2.5” MOS Sensor

• Effective Sensor Resolution: 8.29 MP
• Gain: 0 to 30 dB
• Minimum Illumination: 1.5 Lux at 1/30 Shutter Speed
• White Balance Range: 2000 to 15,000K
• Focal Length: 4.1 to 98.9mm
• 35mm Equivalent Focal Length: 25 to 600mm
• Optical Zoom Ratio: 24x
• Max Digital Zoom: 32x ( in UHD 4K). 48x ( in 1080p).
• Maximum Aperture: f/1.8 to 4
• Optical Design: 14 Elements in 11 Groups
• Minimum Focusing Distance: Not Specified by Manufacturer
• Filter Size: 62 mm
• Control Rings: Focus. Zoom.
• Image Stabilization: Optical. Digital.
• Focus Control: Autofocus. Manual Focus.
• Shutter Speed: 1/6 to 1/8000 sec
• Built-In ND Filter: Mechanical Filter Wheel with Clear, 2 Stop ¼, 4 Stop (1/16), 6 Stop (1/64) ND Filters
• Built-In Microphone Type: Stereo
• Recording Media: 2 x SDXC Card Slot
• Recording Modes: H.265/MOV 4:2:0 10-Bit: 3840 × 2160p at 50/59.94 fps (200 Mb/s VBR). 3840 × 2160p at 23.98/25/29.97 fps (150 Mb/s VBR). MOV 4:2:2 10-Bit: 3840 × 2160p at 23.98/25/29.97 fps (150 Mb/s VBR) . 1920 × 1080p at 25/29.97 fps (200 Mb/s VBR) . 1920 × 1080p at 23.98/25/29.97/50/59.94 fps (100 Mb/s VBR) . 1920 × 1080i at 50/59.94 fps (100 Mb/s VBR) . 1920 × 1080i at 50/59.94 fps (50 Mb/s VBR) . 1920 × 1080p at 23.98/29.97 fps (50 Mb/s VBR). H.265/MP4 4:2:0 10-Bit: 3840 × 2160p at 50/59.94 fps (100 Mb/s VBR) . 3840 × 2160p at 50/59.94 fps (72 Mb/s VBR) . MP4 4:2:0 8-Bit: 3840 × 2160p at 23.98/25/29.97 fps (72 Mb/s VBR). 1920 × 1080p at 23.98/50/59.94 fps (50 Mb/s VBR) . AVCHD 4:2:0 8-Bit: 1920 × 1080p at 50/59.94 fps (25 Mb/s VBR) . 1920 × 1080i at 23.98/50/59.94 fps (21 Mb/s VBR) . 1920 × 1080i at 50/59.94 fps (17 Mb/s VBR) . 1280 × 720p at 50/59.94 fps (8 Mb/s VBR) . P2 4:2:2 10-Bit: 1920 × 1080p at 50/59.94 fps (50 Mb/s VBR). 1920 × 1080i at 50/59.94 fps (25 to 50 Mb/s VBR). 1280 × 720p at 50/59.94 fps (25 to 50 Mb/s VBR).
• Audio Recording: MOV: 2-Channel 24-Bit LPCM Audio. MP4: 2-Channel 24-Bit AAC Audio. AVCHD: 2-Channel 24-Bit AC-3 Audio.
• IP Streaming: RTMP, RTP, RTSP: 320 × 180 to 1920 × 1080
• Video Connectors: 1 x BNC (3G-SDI) Output. 1 x HDMI Output.
• Audio Connectors: 1 × 1/8” / 3.5 mm Stereo Output. 2 × 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input.
• Other I/O: 1 x USB Micro-B Input. 1 × 2.5 mm Output. 1 x RJ45 Camera Interface Data, Control Input/Output.
• Wireless Interfaces: Wi-Fi Video Output, Audio Output
• Display Type: Articulating Touchscreen LCD
• Size: 3.5”
• Resolution: 2,760,000 Dot
• EVF Display Type: LCD
• Screen Size: .24”
• Power Consumption: 7.9 W
• Accessory Mount: 1 x Cold Shoe Mount
• Tripod Mount: 1/4”-20 Female
• Built-In Light: Yes
• Dimensions: 10.12 × 6.26 × 5.08” / 25.7 × 15.9 × 12.9 cm
