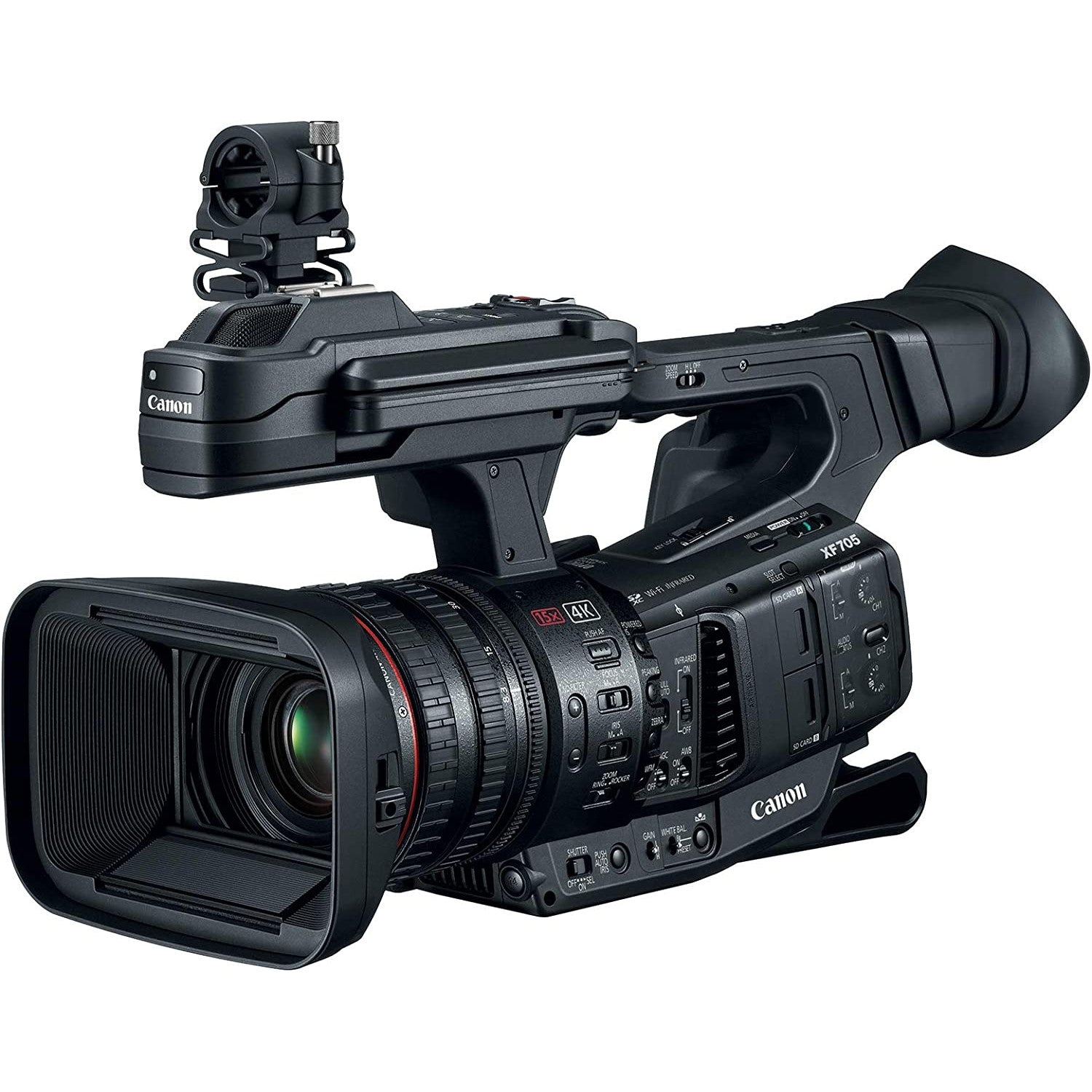

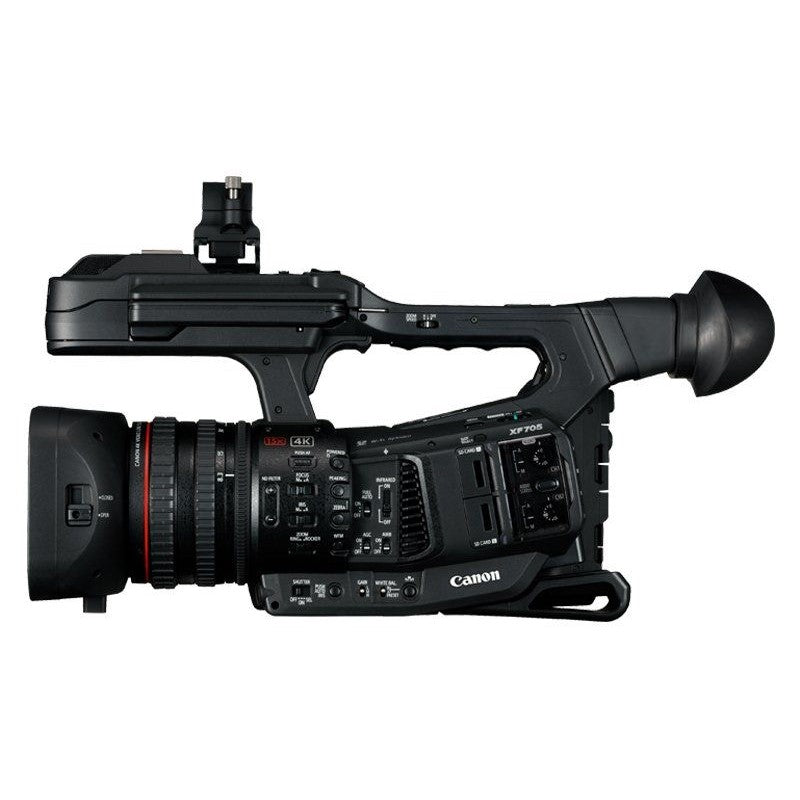

CANON XF705

A professional handheld 4K UHD camcorder with the latest HEVC codec enables high-quality internal UHD HDR recording or output for the broadcast and production industry.

Cutting-edge XF-HEVC recording format and advanced 12G-SDI interface for UHD HDR production.

Canon’s first professional camcorder with the new XF-HEVC file format enables the recording of internal 4:2:2 10-bit UHD (HLG/PQ) files to SD cards, plus outputs a UHD signal over a single 12G-SDI interface or ethernet connection.

4K UHD/50P 4:2:2 10-bit support with HEVC

A 1.0-Type CMOS sensor and DIGIC processor produce professional 4K UHD 50P images in 4:2:2 10-bit, utilizing Canon’s new and efficient XF-HEVC file format for smaller files that can be recorded directly to SD cards. Multiple recording formats are also supported including XF-AVC and high frame rates up to 120P.

Simple HDR workflow

XF 705 can record internally in two HDR formats, using HLG or PQ, and features extensive HDR assist functions that aid the user to control the exposure for HDR shooting. Alternatively, for less time-critical productions, Canon Log3/BT.2020 support enables flexibility in an HDR Post-Production workflow.

Advanced 12G-SDI and IP streaming

With four times the bandwidth of 3G-SDI, the 12G-SDI terminal is capable of sending high-quality uncompressed data over a single professional interface, while a built-in Ethernet port enables 4K IP streaming.

Accurate and reliable autofocus

With a 1.0-Type high-resolution sensor, focus accuracy is critical. Therefore, the XF705 features Canon’s innovative Dual Pixel CMOS AF focusing system that provides features to ensure both autofocus and manual focusing is accurate and reliable, giving users the confidence to open up the aperture, track moving subjects or focus pull with minimal effort.

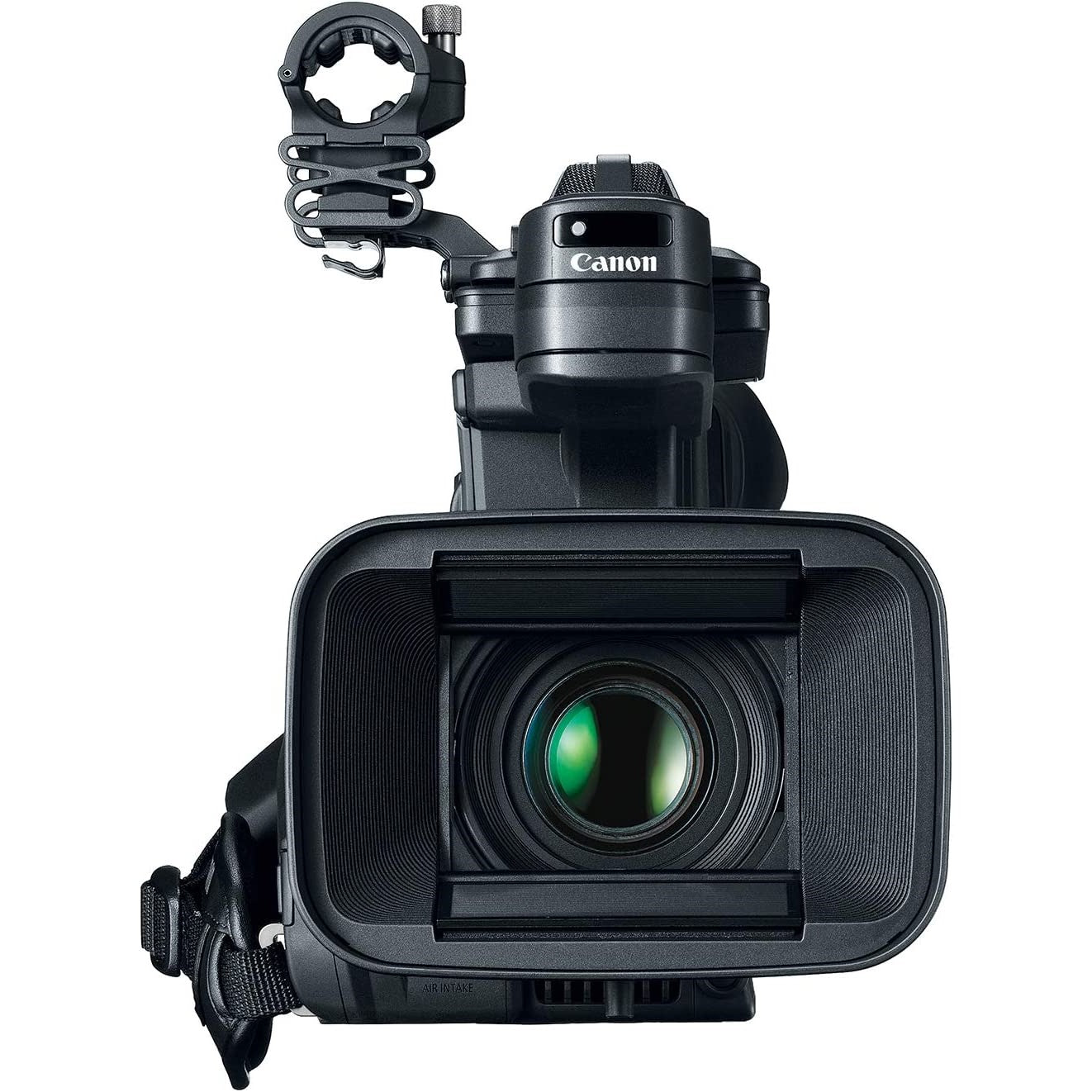

Wide angle L-series lens with 15 x zoom

Image capture starts with outstanding optics and Canon’s L-Series lens delivers this in a compact, 3-ring, 15x wide angle

Professional features

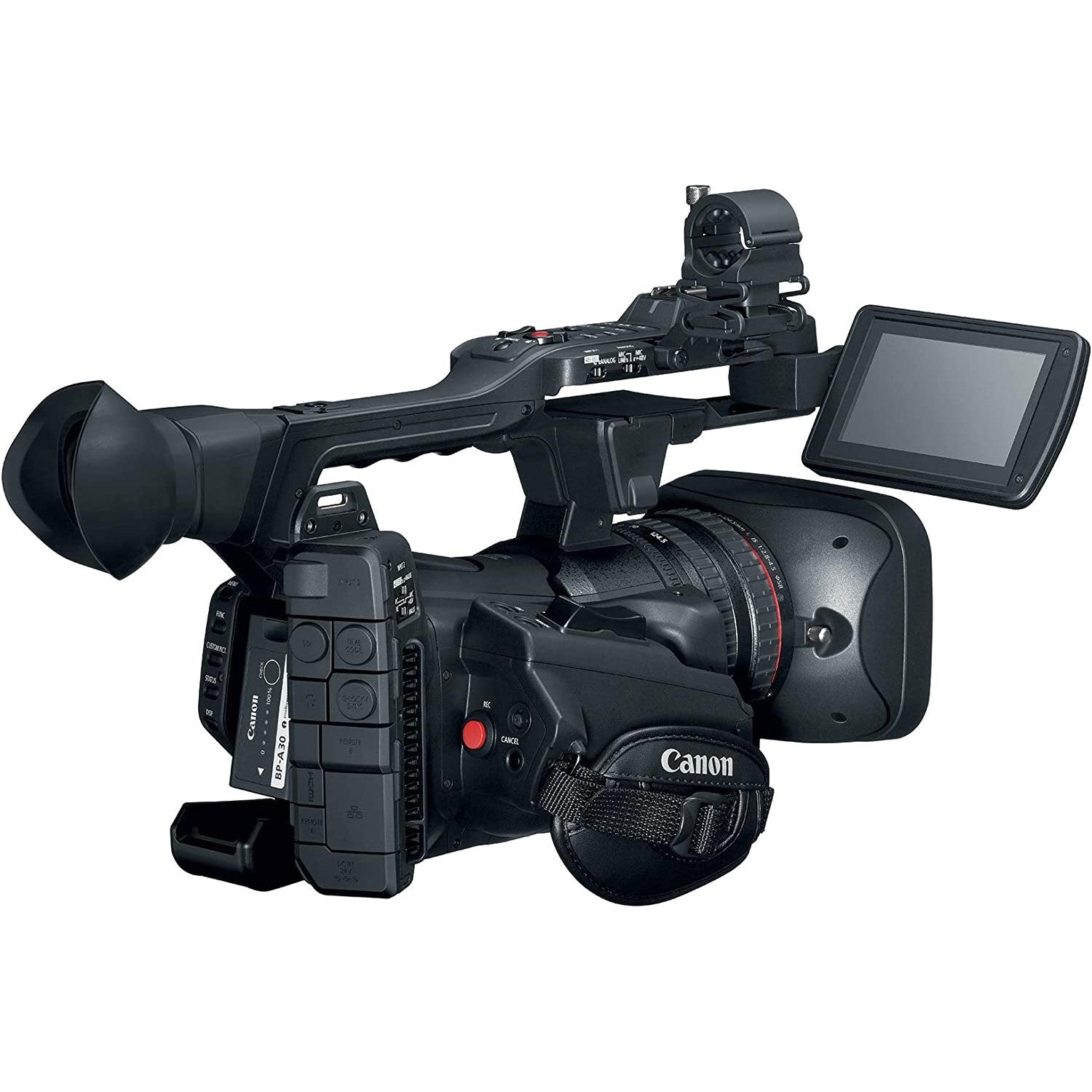

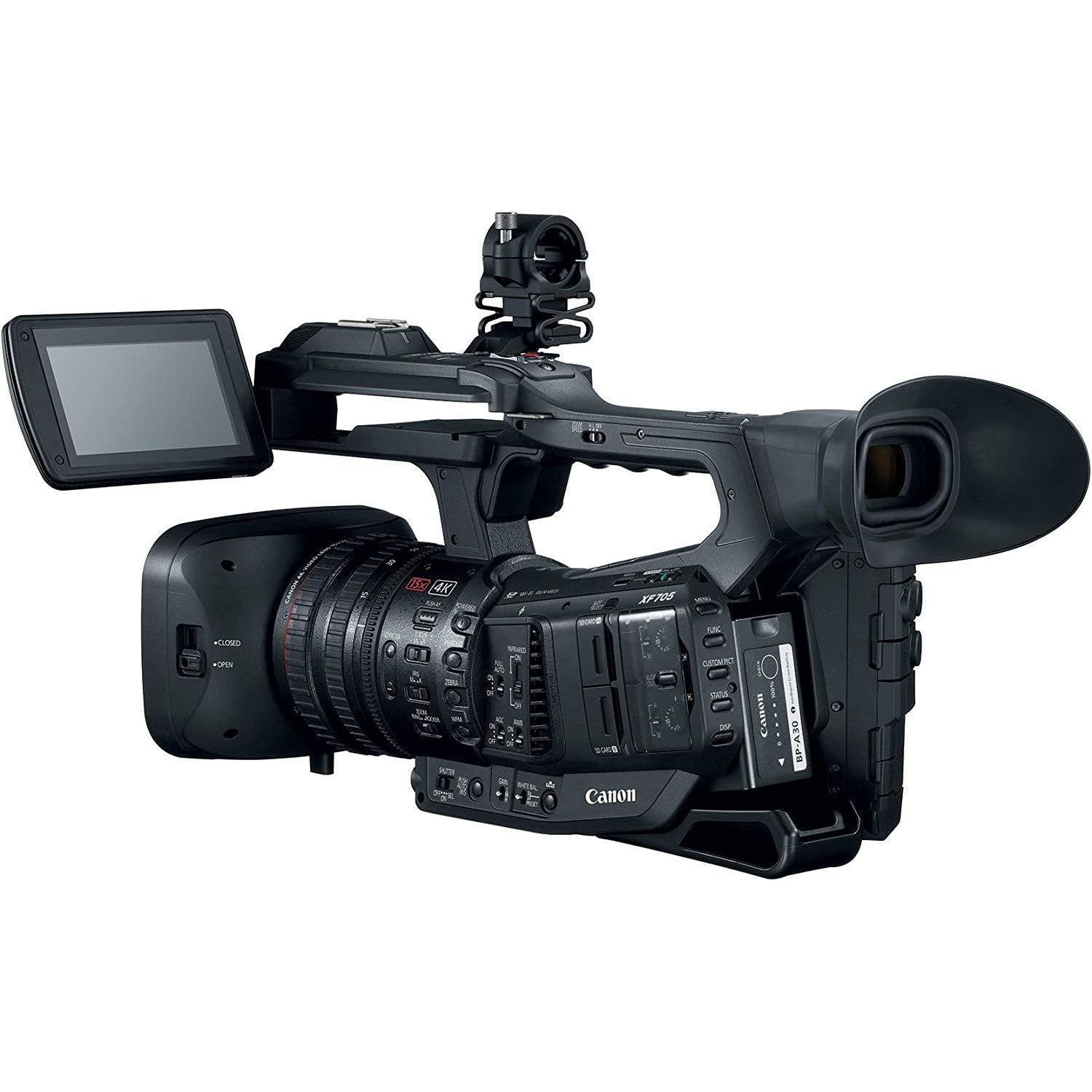

Building on feedback from the hugely popular XF305, XF705 further enhances ergonomics and professional features, including HDR image monitoring using the built-in EVF and a vary-angle LCD touchscreen. An improved grip and shoulder pad reduce strain and fatigue, making it an ideal platform for busy professionals on the move.

Specifications

Imaging

Image Sensor 1-Chip 1" CMOS Sensor

Sensor Resolution 4268 x 3148 (13.4 MP)

Effective Sensor Resolution 3840 x 2160 (8.29 MP)

White Balance Range 2000 to 15,000K

Lens

Focal Length 8.3 to 124.5mm 35mm

Equivalent Focal Length 25.5 to 382.5mm

Optical Zoom Ratio 15x

Max Digital Zoom 15x

Maximum Aperture f/2.8 to 4.5

Filter Size 58 mm

Control Rings Focus Zoom Iris

Image Stabilization Optical Digital

Focus Control Autofocus Manual Focus

Camera

Built-In ND Filter Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Built-In Microphone Type Stereo

Recording Media 2 x SDXC Card Slots

Recording

Broadcast System Compatibility NTSC

Recording Modes H.265 4:2:2 10-Bit: 3840 x 2160p at 23.98/29.97/59.94 fps (160 Mb/s) 3840 x 2160p at 23.98/29.97/59.94 fps (110 Mb/s) 1920 x 1080p at 23.98/29.97/59.94 fps (60 Mb/s) 1920 x 1080p at 23.98/29.97/59.94 fps (45 Mb/s) 1920 x 1080i at 59.94 fps (60 Mb/s) 1920 x 1080i at 59.94 fps (45 Mb/s) 1920 x 1080p at 120 fps (180 Mb/s) H.264 4:2:0 8-Bit: 1920 x 1080p at 23.98/29.97/59.94 fps (45 Mb/s)

Audio Recording 4-Channel 24-Bit 48 kHz LPCM Audio

IP Streaming MPEG2: 1920 x 1080 to 3840 x 2160 at 25p, 29.97p, 50p, 59.94p (4.0 to 16.00 Mb/s) MPEG2: 1920 x 1080 to 1920 x 1080 at 50i, 59.94i (4.0 to 9.0 Mb/s)

Interfaces

Video Connectors 1 x HDMI (HDMI 2.0) Output 1 x BNC (12G-SDI)

Output Audio Connectors 2 x 3-Pin XLR Input 1 x 1/8" (3.5 mm) Stereo Input 1 x 1/8" (3.5 mm) Stereo Headphone Output

Other I/O 1 x RJ45 LAN Input/Output 1 x RJ45 RS-422 Control

Wireless Interfaces Wi-Fi Video Output, Audio Output, Control

Display

Display Type LCD

Screen Size 4.0"

Touchscreen Yes

Screen Resolution 1,230,000 Dots

EVF

EVF Display Type OLED

Screen Size .46"

EVF Resolution 1,770,000 Dots

Power

Battery Type Canon BP-A Series

Environmental

Operating Temperature 23 to 113°F / -5 to 45°C

Operating Humidity 0 to 85%

General

Dimensions 17.05 x 10.16 x 7.52" / 433 x 258 x 191 mm (With Protrusions) 14.88 x 8.27 x 6.38" / 378 x 210 x 162 mm (Without Protrusions)

Weight 5.9 lb /

2660 g
